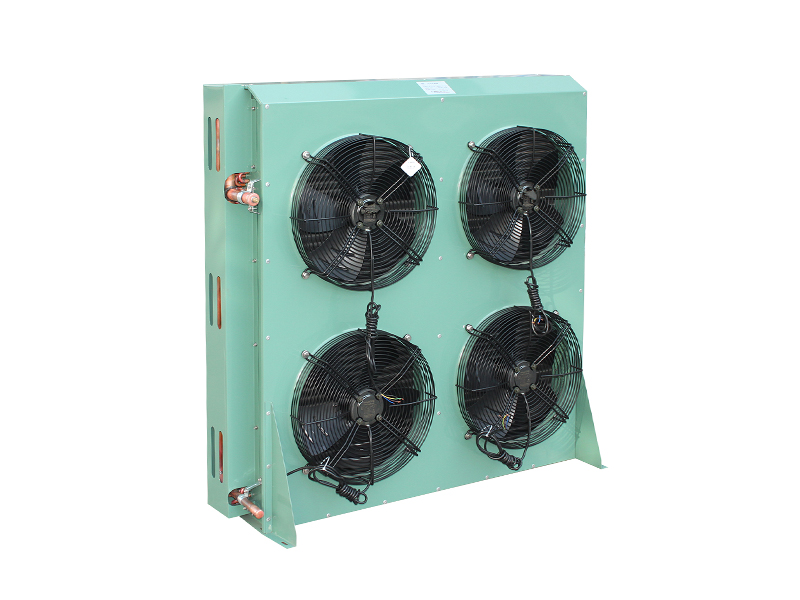

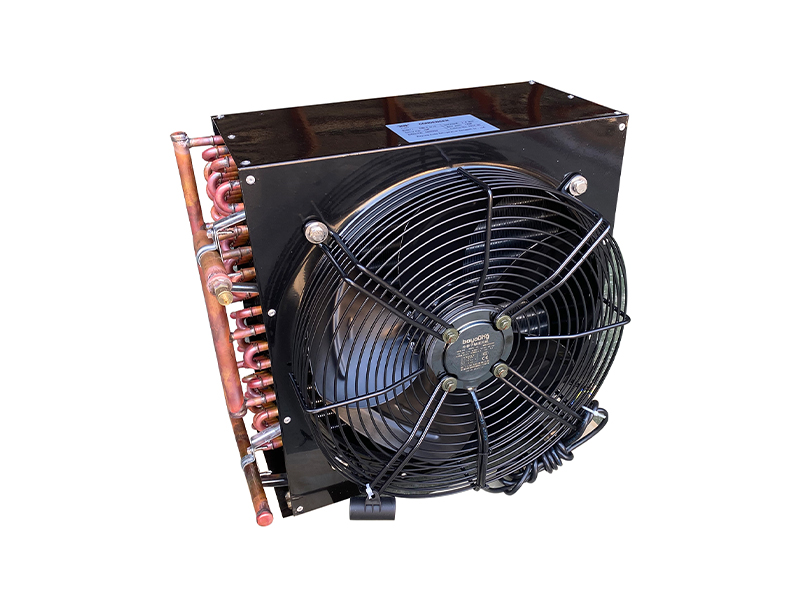

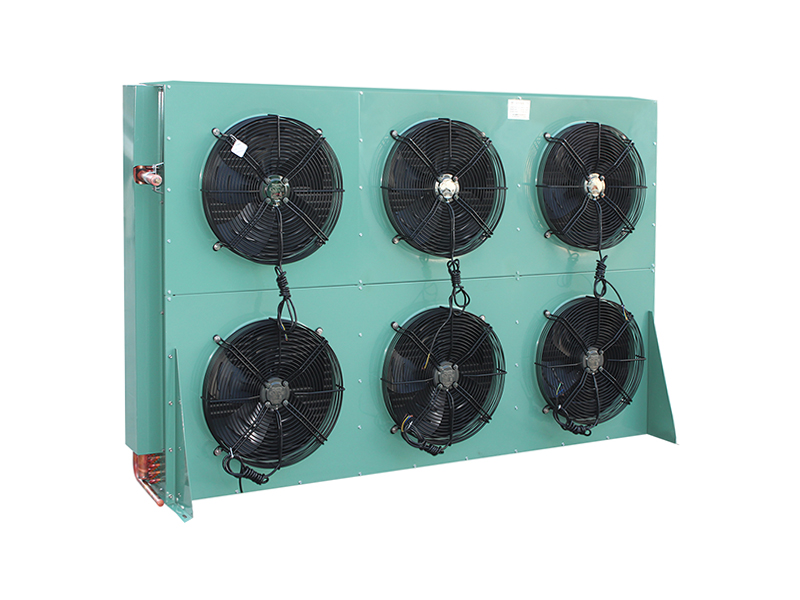

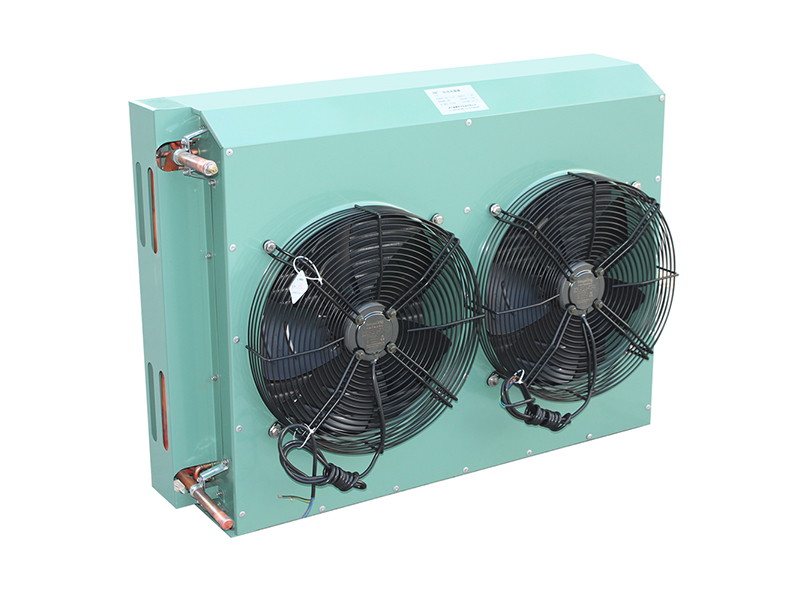

Kondensor berpendingin udara FNH adalah komponen penting dalam peralatan pendingin. Ini terutama menghilangkan panas yang dilepaskan oleh refrigeran selama proses kondensasi melalui konveksi udara, mempertahankan operasi normal sistem pendingin. Produk ini dapat dilengkapi dengan berbagai jenis kipas kondensor sesuai dengan kebutuhan pelanggan untuk memenuhi berbagai kebutuhan disipasi panas.
Parameter teknis Kondensor Air-Cooled Jenis FNH
Model | Kapasitas Pertukaran Panas (KW) | Permukaan (㎡) | Pengaturan pipa tembaga | Penggemar Ke Travhea (φmm) | Into Travhea (Φmm) | Outlet cairan (Φmm) | ||||
Qty | Φfan (mm) | Volume Udara (M³/H) | Kekuatan (w) | Tegangan (v) | ||||||
FNH-0.6/2 | 0.6 | 2 | 2x4 | 1 | 200 | 780 | 55 | 220 | 10 | 10 |
FNH-0.9/3 | 0.9 | 3 | 3x4 | 1 | 200 | 780 | 55 | 220 | 10 | 10 |
FNH-1.2/4 | 1.2 | 4 | 3x5 | 1 | 250 | 970 | 80 | 220 | 10 | 10 |
FNH-1.7/6 | 1.7 | 6 | 3x6 | 1 | 300 | 2040 | 1x85 | 220/380 | 10 | 10 |
FNH-2.5/8.0 | 2.5 | 8 | 3x8 | 1 | 300 | 2040 | 1x85 | 220/380 | 10 | 10 |
FNH-4.6/15 | 4.6 | 15 | 4x10 | 1 | 350 | 2700 | 1x180 | 220/380 | 19 | 16 |
FNH-5.4/18 | 5.4 | 18 | 4x10 | 1 | 400 | 4000 | 1x230 | 380 | 19 | 16 |
FNH-6.4/22 | 6.4 | 22 | 5x10 | 1 | 400 | 4000 | 1x230 | 380 | 19 | 16 |
FNH-6.4/22b | 6.4 | 22 | 4x8 | 2 | 350 | 5400 | 2x180 | 380 | 19 | 16 |
FNH-7.3/28 | 7.3 | 28 | 4x9 | 2 | 350 | 5400 | 2x180 | 380 | 19 | 16 |
FNH-9.7/33 | 9.7 | 33 | 4x10 | 2 | 350 | 5400 | 2x180 | 380 | 19 | 16 |
FNH-12.0/41 | 12 | 41 | 4x12 | 2 | 400 | 8000 | 2x230 | 380 | 19 | 16 |
FNH-13.8/50 | 13.8 | 50 | 4x14 | 2 | 400 | 8000 | 2x230 | 380 | 19 | 16 |
FNH-16.7/60 | 16.7 | 58 | 4x14 | 2 | 400 | 8000 | 2x230 | 380 | 22 | 19 |
FNH-20.7/70 | 20.7 | 70 | 4x18 | 4 | 350 | 10800 | 4x180 | 380 | 28 | 22 |
FNH-23.0/80 | 23 | 80 | 4x20 | 4 | 400 | 16000 | 4x230 | 380 | 28 | 22 |
FNH-27.6/100 | 27.6 | 100 | 5x20 | 4 | 400 | 16000 | 4x230 | 380 | 28 | 22 |
FNH-33.3/120 | 33.3 | 120 | 5x24 | 4 | 400 | 16000 | 4x230 | 380 | 32 | 25 |
FNH-39.8/140 | 39.8 | 140 | 5x24 | 4 | 450 | 18800 | 4x280 | 380 | 32 | 25 |
FNH-45.6/160 | 45.6 | 160 | 5x26 | 4 | 450 | 18800 | 4x280 | 380 | 32 | 25 |
FNH-49.9/180 | 49.9 | 180 | 5x26 | 4 | 500 | 26400 | 4x460 | 380 | 32 | 25 |

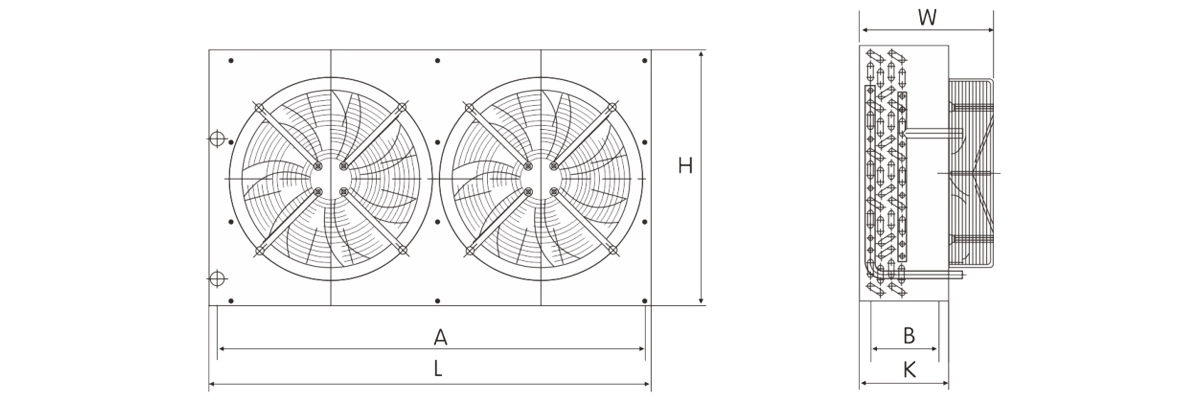

Dimensi penampilan dan pemasangan kondensor udara tipe fnh
Model | Dimensi overll | |||||
L | K | H | A | B | W | |
FNH-0.6/2 | 280 | 95 | 240 | 260 | 65 | 140 |
FNH-0.9/3 | 280 | 120 | 240 | 260 | 80 | 165 |
FNH-1.2/4 | 300 | 120 | 290 | 280 | 80 | 175 |
FNH-1.7/6 | 350 | 150 | 340 | 330 | 110 | 235 |
FNH-2.5/8.0 | 450 | 150 | 435 | 420 | 100 | 250 |
FNH-4.6/15 | 485 | 170 | 535 | 455 | 145 | 280 |
FNH-5.4/18 | 520 | 180 | 535 | 490 | 145 | 290 |
FNH-6.4/22 | 600 | 180 | 535 | 570 | 145 | 290 |
FNH-6.4/22b | 875 | 200 | 435 | 845 | 145 | 290 |
FNH-7.3/28 | 875 | 200 | 485 | 845 | 145 | 290 |
FNH-9.7/33 | 935 | 200 | 535 | 905 | 145 | 290 |
FNH-12.0/41 | 935 | 200 | 635 | 905 | 145 | 290 |
FNH-13.8/50 | 935 | 200 | 735 | 905 | 145 | 290 |
FNH-16.2/58 | 1085 | 200 | 735 | 1055 | 145 | 290 |
FNH-20.7/70 | 1085 | 200 | 935 | 1055 | 145 | 290 |
FNH-23.0/80 | 1100 | 220 | 1035 | 1070 | 165 | 310 |
FNH-27.6/100 | 1100 | 220 | 1035 | 1070 | 165 | 310 |
FNH-33.3/120 | 1130 | 220 | 1035 | 1100 | 165 | 310 |
FNH-39.8/140 | 1190 | 220 | 1235 | 1170 | 165 | 320 |
FNH-45.6/160 | 1250 | 220 | 1335 | 1220 | 165 | 320 |
FNH-49.9/180 | 1410 | 220 | 1335 | 1380 | 165 | 320 |
